Speed Estimation and Direction Detection

Speed estimation involves calculating the velocity of an object as it moves through a frame of reference, typically captured by cameras. Direction detection, on the other hand, determines the trajectory or path that the object is following. These processes rely heavily on object detection to identify and locate objects within each frame of a video sequence and object tracking to follow the object's movement over time.

Applications of speed estimation and direction detection include:

• Traffic Management and Road Safety: Automated systems can monitor vehicle speeds and detect traffic flow.
• Surveillance and Security: Tracking movement to detect intrusions and manage crowds.
• Sports Analytics: Analyzing the performance of players and strategies in various sports.
• Autonomous Vehicles: Enhancing navigation and collision avoidance systems.
• Logistics and Supply Chain: Optimizing warehouse management and fleet operations.

In conclusion, speed estimation and direction detection through object detection and tracking represent transformative technologies with wide-ranging applications. From enhancing road safety to optimizing sports performance, these advancements are reshaping various sectors, driving greater efficiency and safety.

As we proceed with speed estimation and direction detection, it's essential to have an object detection model in place. You can either use a pre-built model or custom-train one for specific objects. For those unfamiliar with custom training, resources such as Custom Object Detection Using YOLOv8 provide valuable guidance. In this case, we’ll be using a pre-built YOLOv8 model provided by Ultralytics.

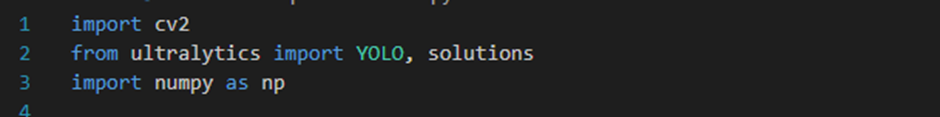

Step 1: Importing Necessary Libraries

• cv2: The OpenCV library for computer vision tasks.
• YOLO and solutions: Used for object detection and speed estimation.
• numpy: A library for numerical operations.

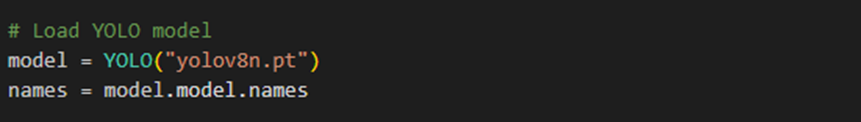

Step 2: Loading the YOLO Model

• Loads the YOLOv8 model and retrieves the class names.

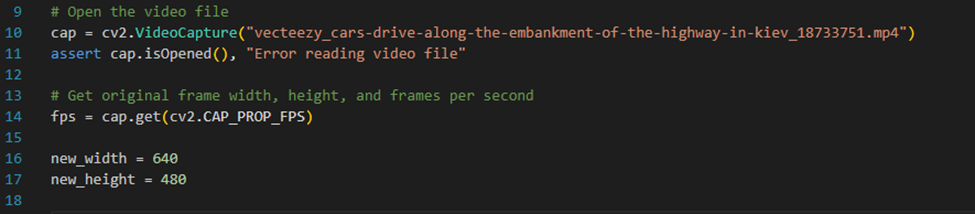

Step 3: Opening the Video File

• Opens the video file and ensures it is successfully opened.
• Retrieves the frames per second (FPS) from the video file.
• Sets the new dimensions for resizing the video frames.

Step 4: Setting Up Video Writer for Output

• Configures the video writer to save the processed video.

Step 5: Defining Line Points for Speed Estimation

• Defines points for a line to be used in speed estimation, positioned 50 pixels up from the bottom.

Step 6: Initializing Speed Estimator

• Creates an instance of the Speed Estimator with the defined line points and class names.

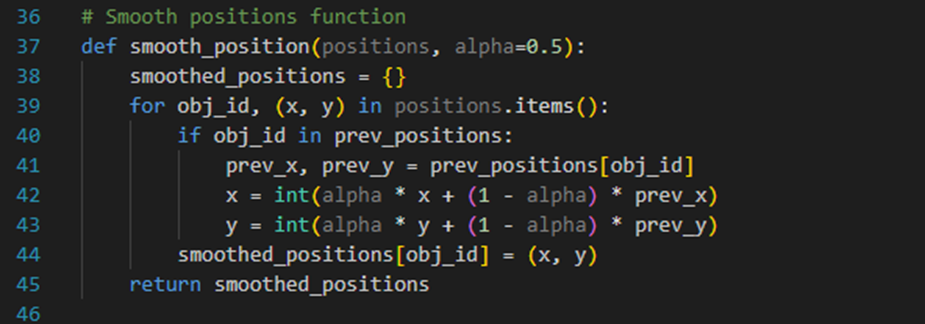

Step 7: Smoothing Function for Object Positions

• Defines a function to smooth the positions of objects using exponential smoothing to reduce noise.

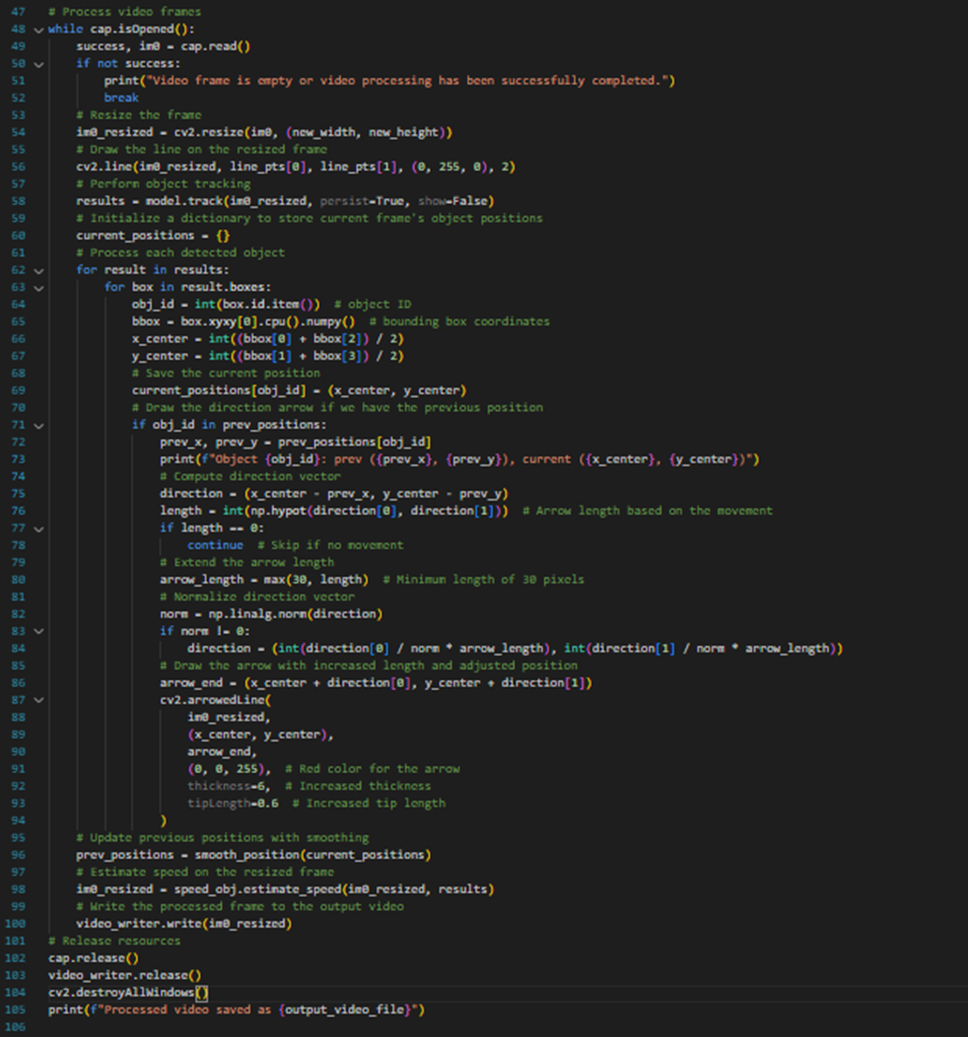

Step 8: Processing Video Frames

• Reads frames from the video file.
• Resizes the frames and draws a line for speed estimation.
• Performs object tracking using the YOLO model.
• Stores current frame's object positions.
• Draws direction arrows for tracked objects.
• Updates previous positions with smoothing.
• Estimates speed on the resized frame.
• Writes the processed frame to the output video file.
• Releases resources and prints a message when the video is saved.

Conclusion

In summary, speed estimation and direction detection are powerful applications of object detection and tracking technologies. By leveraging advanced models, such as those provided by Ultralytics, we can accurately monitor and analyze the movement of objects in real-time, with significant implications across diverse fields, including traffic management, security surveillance, sports analytics, autonomous vehicles, and logistics.

The precision in detecting and tracking objects unlocks new opportunities for enhancing efficiency and safety across numerous applications. As technology continues to advance, we can anticipate the emergence of even more sophisticated and reliable solutions, further broadening the potential uses of speed estimation and direction detection.

By understanding and integrating these technologies, we can drive innovation and make informed decisions that positively impact various industries and aspects of daily life.

---
